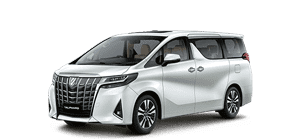

New Alphard Specification

Transmisi / Transmission Type CVT CVT 8 Speed A/T
Perbandingan Gigi / Gear Ratio 1st - - 5.519
Perbandingan Gigi / Gear Ratio 2nd - - 3.184
Perbandingan Gigi / Gear Ratio 3rd - - 2.050
Perbandingan Gigi / Gear Ratio 4th - - 1.491
Perbandingan Gigi / Gear Ratio 5th - - 1.234
Perbandingan Gigi / Gear Ratio 6th - - 1.000
Perbandingan Gigi / Gear Ratio 7th - - 0.800
Perbandingan Gigi / Gear Ratio 8th - - 0.673
Perbandingan Gigi Mundur / Reverse Gear Ratio 1.751 1.751 4.220
Perbandingan Gigi Akhir / Final Gear Ratio 5.791 5.791 3.003
Suspensi Depan / Front Suspension MacPherson Strut MacPherson Strut MacPherson Strut
Suspensi Belakang / Rear Suspension Double Wishbone Double Wishbone Double Wishbone
Rem Depan / Front Brake Ventilated Disc Ventilated Disc Ventilated Disc
Rem Belakang / Rear Brake Ventilated Disc Ventilated Disc Ventilated Disc
Ukuran Ban / Tires Size 235/50 R18 235/50 R18 235/50 R18
Sistem Kemudi / Steering System Rack and Pinion with EPS Rack and Pinion with EPS Rack and Pinion with EPS
Drivetrain Type FF-2 WD FF-2 WD -
Stabilizer with Torsion Bar (Front & Rear) with Torsion Bar (Front & Rear) with Torsion Bar (Front & Rear)
Alloy Wheel 18 Inch Wheel 18 Inch Wheel 18 Inch Wheel

Overall Panjang / Length (mm) 4,945 4,945 4,945
Overall Lebar / Width (mm) 1,850 1,850 1,850
Overall Tinggi / Height (mm) 1,895 1,895 1,895
Jarak Poros Roda / Wheelbase (mm) 3,000 3,000 3,000
Jarak Pijak Depan / Front Tread (mm) 1,575 1,575 1,575
Jarak Pijak Belakang / Rear Tread (mm) 1,600 1,600 1,600
Jarak Terendah / High Ground Clearanace (mm) 160 160 160

Tipe Mesin / Engine Type 4 Cylinders, in-line type 4 Cylinders, in-line type 6 Cylinders, V-type
Isi Silinder / Displacement (cc) 2.494 2.494 3.456
Daya Maksimum / Maximum Output (ps/rpm) 180/6.000 180/6.000 300 / 6.200
Torsi Maksimum / Maximum Torque (kgm/rpm) 23,9/4.100 23,9/4.100 36,8 / 4.700
Bahan Bakar / Fuel Unleaded Gasoline Unleaded Gasoline Unleaded Gasoline
Kapasitas Tangki / Fuel Capacity (Liter) 75 75 75
Bore x Stroke (mm) 90,0 x 98,0 90,0 x 98,0 94,0 x 83,0
Sistem Bahan Bakar / Fuel System Electronic Fuel Injection (EFI) Electronic Fuel Injection (EFI) Electronic Fuel Injection (EFI)
Mesin / Engine 2AR-FE 2AR-FE 2GR-FKS
Rasio Kompresi / Compression Ratio 10,4 : 1 10,4 : 1 11,8 : 1
Valve Mechanism 16-valve DOHC, Chain Drive with Dual VVT-i 16-valve DOHC, Chain Drive with Dual VVT-i 24-valve, DOHC, Chain Drive with VVT-i
